Air conditioning represents one of the largest operating expenses for commercial and residential buildings in the UAE. With temperatures exceeding 40 degrees Celsius for much of the year, cooling systems run almost continuously. For large buildings like offices, hotels, hospitals and shopping malls, traditional split air conditioning units can be inefficient and expensive to operate. This is where chilled water systems offer a better solution.
This blog explains what chilled water systems are, how they work and why they are more cost-effective than other cooling methods for large buildings in the UAE. You will learn about system components, energy savings potential, maintenance requirements and factors to consider when choosing a chilled water system for your property.
What Is a Chilled Water System?

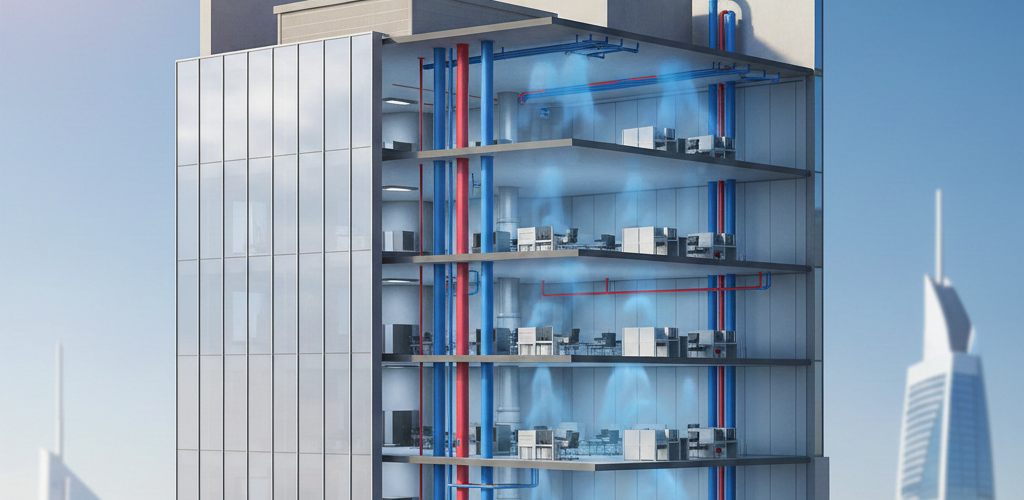

A chilled water system is a centralized cooling solution that uses water as a medium to transfer cooling throughout a building. The system consists of a central chiller that cools water to around 5 to 7 degrees Celsius. This chilled water is then pumped through insulated pipes to air handling units or fan coil units located throughout the building. These units use the chilled water to cool air, which is then distributed to occupied spaces.
After absorbing heat, the now-warmer water returns to the chiller where it is cooled again, creating a continuous循环. This approach is more efficient than having individual air conditioning units in every room or zone.
Key Components of a Chilled Water System
Understanding the main components helps explain how these systems achieve better efficiency:
Chiller
The chiller is the heart of the system. It removes heat from water using a refrigeration cycle. There are different types of chillers including water-cooled, air-cooled and absorption chillers. Water-cooled chillers are most common in large UAE buildings due to their higher efficiency.
Cooling Tower
In water-cooled systems, a cooling tower dissipates the heat removed from the building. The cooling tower uses evaporation to cool water that circulates through the chiller’s condenser.
Pumps
Pumps circulate chilled water through the distribution piping to air handling units and fan coil units, and then return it to the chiller. Variable speed pumps improve efficiency by adjusting flow based on cooling demand.
Air Handling Units and Fan Coil Units
These units are located throughout the building and use chilled water to cool air. Air handling units typically serve larger zones, while fan coil units serve individual rooms or small areas.
Piping and Insulation
Insulated piping carries chilled water to and from cooling units. Proper insulation is critical to prevent heat gain and condensation.
Controls and Automation
Modern chilled water systems include sophisticated controls that optimize performance by adjusting chiller operation, pump speeds and temperature settings based on real-time demand.
Why Chilled Water Systems Are More Efficient
Chilled water systems offer several efficiency advantages over decentralized cooling approaches:
Centralized Cooling Production
Producing cooling at a central location is more efficient than running many separate air conditioning units. Chillers can be optimized for performance and can take advantage of economies of scale.
Variable Capacity Operation
Chilled water systems can adjust cooling output to match actual demand. During cooler periods or low occupancy times, the system operates at reduced capacity, saving energy. Individual AC units typically run at full capacity or off, with no in-between.
Higher Efficiency Equipment
Large chillers are generally more efficient than small packaged units. Water-cooled chillers in particular achieve high efficiency levels that are difficult to match with air-cooled equipment.
Better Load Distribution
Chilled water systems can distribute cooling precisely where needed. Zones with higher heat loads receive more cooling, while zones with lower loads receive less. This targeted approach reduces waste.
Free Cooling Opportunities
During cooler months or at night, some chilled water systems can use outdoor air or cooling towers for free cooling, bypassing the chiller entirely. This is especially beneficial in the UAE during winter months.
Reduced Refrigerant Use
Chilled water systems use water as the primary heat transfer medium. While refrigerants are still used in the chiller, the total refrigerant charge is much smaller than in systems with refrigerant piping throughout the building.
Cost Savings from Chilled Water Systems
The primary benefit of chilled water systems is reduced operating costs. Here is how savings are achieved:
Lower Electricity Consumption
Energy-efficient chillers and optimized system operation result in significantly lower electricity use compared to multiple split units. In many UAE buildings, cooling represents 60 to 70 percent of total electricity consumption, so even small efficiency improvements create substantial savings.
Reduced Peak Demand Charges
Many commercial properties in Dubai pay demand charges based on peak electricity usage. Chilled water systems with proper controls can reduce peak demand by staging equipment operation and avoiding simultaneous startup of multiple units.
Longer Equipment Lifespan
Centralized equipment typically lasts longer than individual units because it operates under controlled conditions with regular maintenance. This reduces replacement costs over time.
Lower Maintenance Costs
Maintaining a single central plant is generally more cost-effective than servicing dozens or hundreds of individual units spread throughout a building. Technicians can access equipment more easily, and spare parts inventory is simpler.
Better Control of Utility Costs
Chilled water systems provide detailed monitoring of energy use, water consumption and system performance. This data helps identify optimization opportunities and track savings over time.
Applications Suitable for Chilled Water Systems
Chilled water systems are ideal for certain building types and applications:
Large Office Buildings
Multi-story office towers benefit from centralized cooling due to high and variable cooling loads throughout the day.
Hotels
Hotels require cooling for guest rooms, public areas, kitchens and back-of-house spaces. Chilled water systems provide flexibility to serve these diverse needs efficiently.
Hospitals and Healthcare Facilities
Medical facilities require precise temperature and humidity control with high reliability. Chilled water systems meet these demands while managing energy costs.
Shopping Malls
The large open spaces and high occupancy of shopping malls create substantial cooling loads. Chilled water systems efficiently serve these areas along with individual retail units.
Educational Institutions
Schools and universities with multiple buildings benefit from campus-wide chilled water distribution from central plants.
Industrial Facilities
Factories and warehouses often have process cooling needs in addition to comfort cooling. Chilled water systems can serve both requirements from a single plant.
Residential Towers
High-rise residential buildings increasingly use chilled water systems for common areas and sometimes for individual units, particularly in luxury developments.
Energy Efficiency Features in Modern Chilled Water Systems
Today’s chilled water systems include several features that maximize efficiency:
Variable Speed Drives
Variable speed drives on chillers, pumps and cooling tower fans allow equipment to operate at the most efficient point for current conditions rather than at full speed.
Free Cooling Economizers
When outdoor conditions permit, waterside economizers use cooling towers to chill water without operating the chiller compressors, providing nearly free cooling.
Heat Recovery
Some systems capture waste heat from chillers for domestic hot water heating or other uses, improving overall building energy efficiency.
Thermal Storage
Ice or chilled water storage allows systems to produce cooling during off-peak hours when electricity is cheaper, then use the stored cooling during peak hours.
Advanced Controls
Building automation systems optimize chilled water system operation by monitoring occupancy, outdoor conditions and energy prices to make real-time adjustments.
High-Efficiency Chillers
Modern chillers use advanced compressor technology, improved heat exchangers and better refrigerants to achieve higher efficiency ratings.
Maintenance Requirements for Chilled Water Systems
Like all HVAC equipment, chilled water systems require regular maintenance to maintain efficiency and reliability. Key maintenance tasks include:
Chiller Maintenance
Chillers need regular inspection of refrigerant levels, oil changes, cleaning of heat exchanger tubes and verification of control system operation. Annual professional service is typical.
Cooling Tower Maintenance
Cooling towers require cleaning to prevent biological growth, water treatment to control scale and corrosion, and mechanical maintenance of fans and motors.
Water Treatment
Proper chemical treatment of chilled water and condenser water prevents corrosion, scale buildup and biological growth that reduce efficiency and damage equipment.
Pump and Motor Service
Pumps and motors need periodic inspection, lubrication and alignment checks. Bearings and seals may require replacement based on operating hours.
Air Handling Unit Maintenance
Filters need regular replacement, coils require cleaning and fans must be inspected to ensure proper operation.
Leak Detection
Piping systems should be inspected for leaks, and insulation should be checked for damage or degradation.
System Performance Monitoring
Regular review of system performance data helps identify efficiency losses or developing problems before they cause failures.
Establishing a comprehensive maintenance program with a qualified MEP contractor ensures the system operates at peak efficiency and minimizes unexpected breakdowns.
Factors to Consider When Installing a Chilled Water System
If you are planning to install a chilled water system, several factors should be evaluated:
Building Size and Cooling Load
Chilled water systems are most cost-effective for buildings with substantial cooling loads. Smaller buildings may not justify the higher initial investment.
Space Requirements
Central plants require dedicated mechanical rooms for chillers, pumps and ancillary equipment, plus space for cooling towers, typically on rooftops.
Initial Cost vs. Operating Cost
Chilled water systems generally have higher upfront costs than decentralized systems, but lower operating costs. A lifecycle cost analysis helps determine overall value.
System Design
Proper system design is critical for efficiency. This includes selecting the right chiller type and size, designing efficient piping layouts and specifying appropriate controls.
Backup and Redundancy
For critical facilities, multiple chillers provide backup capacity if one unit fails. The system should be designed so partial capacity is available during maintenance or failures.
Integration with Other Systems
Chilled water systems should integrate with building automation systems, fire protection systems and power management systems for optimal operation.
Local Climate Conditions
Dubai’s hot and humid climate affects equipment selection, particularly for cooling towers and outdoor equipment that must withstand harsh conditions.
Chilled Water System Design Best Practices
Proper design ensures a chilled water system achieves its efficiency potential:
Right-Size Equipment
Accurate load calculations are essential. Oversized equipment wastes energy, while undersized equipment cannot meet cooling demands.
Efficient Distribution
Minimize piping lengths and pressure drops through proper layout. Use appropriately sized pipes and high-quality insulation.
Zoning Strategy
Divide the building into zones based on usage patterns and cooling requirements. This allows the system to serve each zone efficiently.
Control Strategy
Implement controls that reset chilled water temperatures, optimize chiller staging and adjust pump speeds based on actual loads rather than design maximums.
Future Expansion
Design the system with capacity for future growth if expansion is anticipated. This is more cost-effective than replacing an entire system later.
Common Challenges and Solutions
Chilled water systems may face certain operational challenges:
Low Delta-T Syndrome
This occurs when the temperature difference between supply and return water is lower than designed. It reduces efficiency and may indicate problems with flow rates, controls or air handling units. Solutions include rebalancing the system, repairing control valves and commissioning air handlers properly.
Uneven Cooling
Some zones may be too cold while others are too warm. This is often caused by improper balancing or control issues. System rebalancing and control adjustments typically resolve this.
High Energy Use
If energy consumption is higher than expected, possible causes include fouled heat exchangers, improper chiller staging, failed economizers or poor water treatment. Regular maintenance and performance monitoring help identify and correct these issues.
Corrosion or Scale Buildup
Water quality problems lead to corrosion or scale that reduces efficiency and damages equipment. Proper water treatment programs prevent these issues.
Conclusion
To sum up, chilled water systems offer an efficient and cost-effective cooling solution for large buildings in the UAE. By centralizing cooling production and using water as a distribution medium, these systems achieve energy savings that significantly reduce operating costs compared to decentralized air conditioning. While initial investment is higher, the long-term benefits including lower electricity bills, reduced maintenance and longer equipment life make chilled water systems an excellent choice for commercial, institutional and industrial facilities.
