VRF System Installation and Maintenance in Dubai & UAE
VRF systems provide precise, zone-by-zone cooling while adjusting refrigerant flow according to the demand of different spaces
25+
Years of Experience
500+
Customer Base
10
Expert Services
24/7
Support Available
At Multiline Projects, we provide professional VRF system installation and maintenance services for commercial, residential, and multi-zone properties across Dubai and the UAE.
Our service covers site assessment, system planning, indoor and outdoor unit installation, refrigerant piping, controls, testing, commissioning, troubleshooting, and ongoing maintenance. As an ISO 9001:2015 certified company, Multiline Projects delivers HVAC and electromechanical services with a focus on structured processes and reliable project execution.
A VRF system connects multiple indoor units to one or more outdoor condensing units through refrigerant piping. Because refrigerant flow can be varied according to the requirements of individual zones, the system can provide independent temperature control while supporting efficient operation and reduced outdoor equipment space.

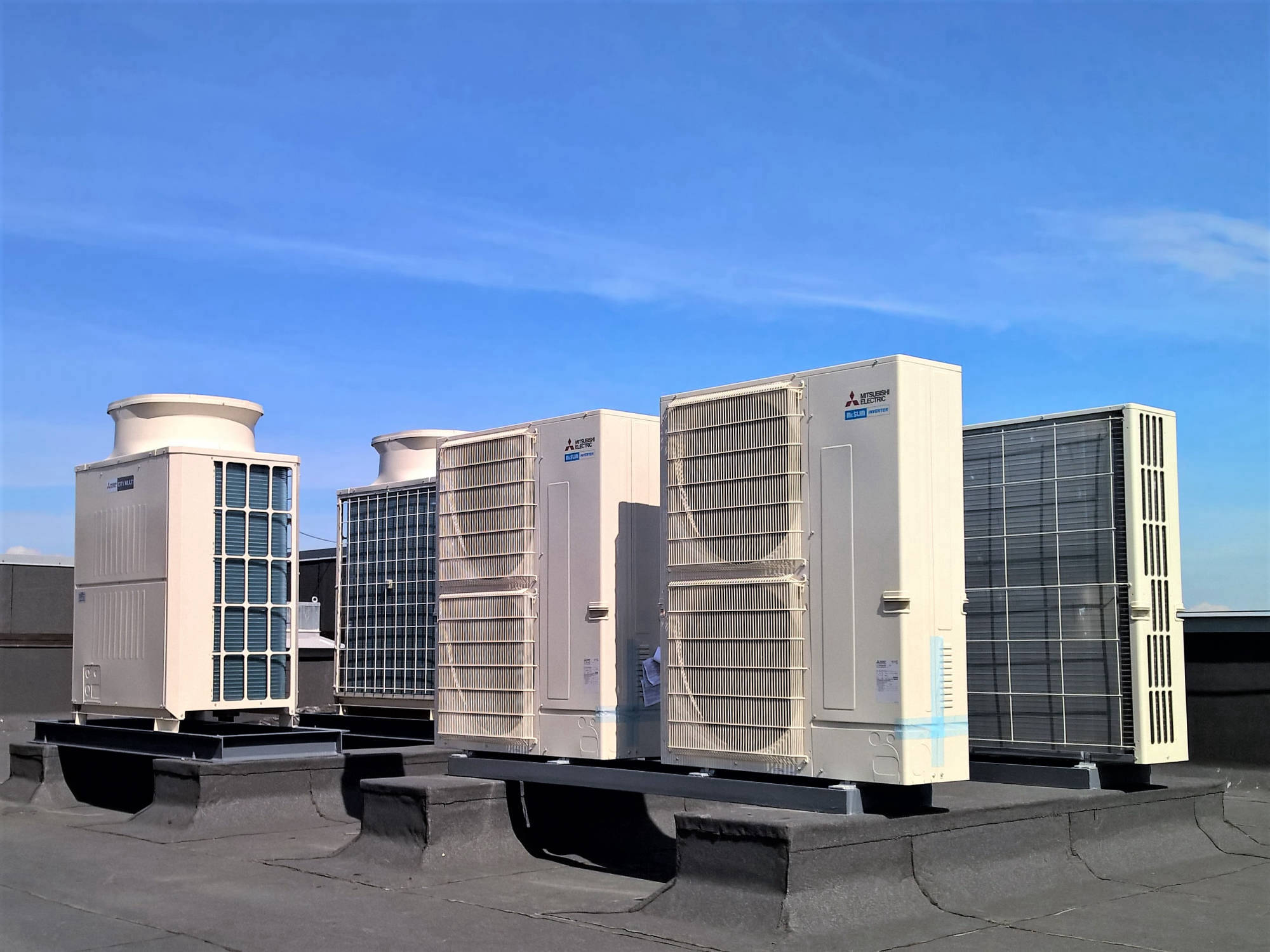

What is a VRF System?
Variable Refrigerant Flow (VRF) is an HVAC system designed to provide cooling, and in some configurations heating, to multiple zones from connected outdoor condensing units. Each indoor unit can be controlled according to the requirements of its individual room or zone. A typical VRF installation includes:
- Outdoor condensing units with compressors and heat-exchange components
- Multiple indoor air conditioning units
- Insulated refrigerant copper piping
- Branch joints or branch selector boxes
- Electronic expansion and refrigerant-control components
- Wired or wireless controllers and thermostats
- Electrical and communication connections
- Centralised controls or BMS integration where required

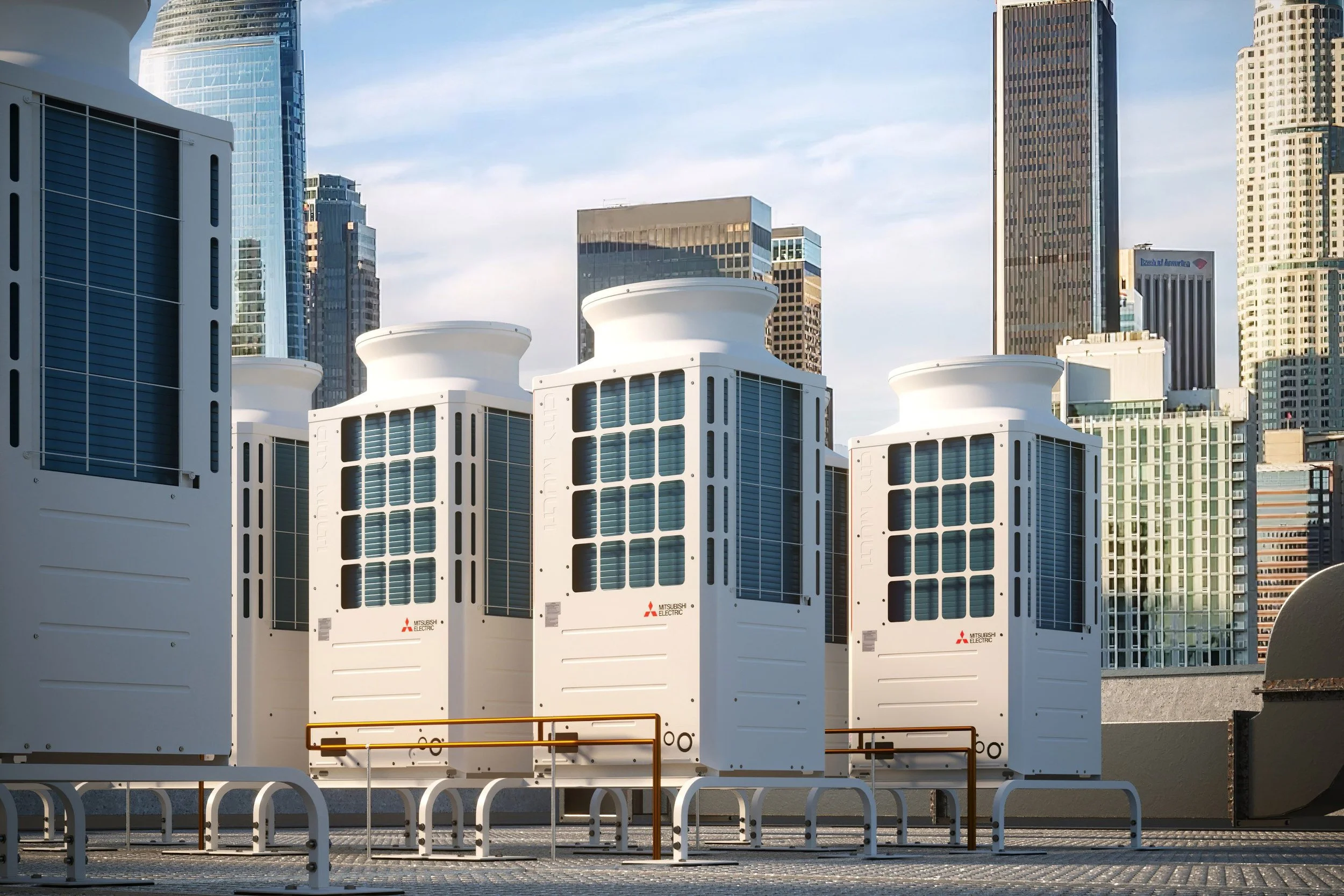

Heat Pump vs. Heat Recovery VRF
VRF systems are commonly available in heat pump and heat recovery configurations. A heat pump VRF system generally operates in either cooling or heating mode across the connected system, while a heat recovery system can provide cooling and heating to different zones at the same time.
This makes heat recovery VRF particularly useful for buildings such as hotels, offices, and mixed-use properties where different rooms may have different temperature requirements simultaneously. In heat recovery systems, branch selector boxes help manage refrigerant flow between zones so that cooling and heating can occur as required.
Our VRF System Installation Services
At Multiline Projects, we manage VRF installation according to the building layout, cooling load, zoning requirements, and selected equipment. The process covers the key components needed to take the system from planning through commissioning.
Site Assessment and System Planning
Every VRF project starts with understanding the building and its cooling requirements. Our team assesses the available space, room layouts, occupancy patterns, heat loads, and intended use of different zones. We consider factors such as:
- Building layout and floor configuration
- Cooling requirements of individual zones
- Indoor unit locations
- Outdoor unit placement
- Refrigerant pipe routing and permissible pipe lengths
- Electrical and control requirements
- Access for future servicing
- Ventilation and equipment clearances
This assessment helps establish an appropriate VRF configuration rather than relying on a standard equipment arrangement.

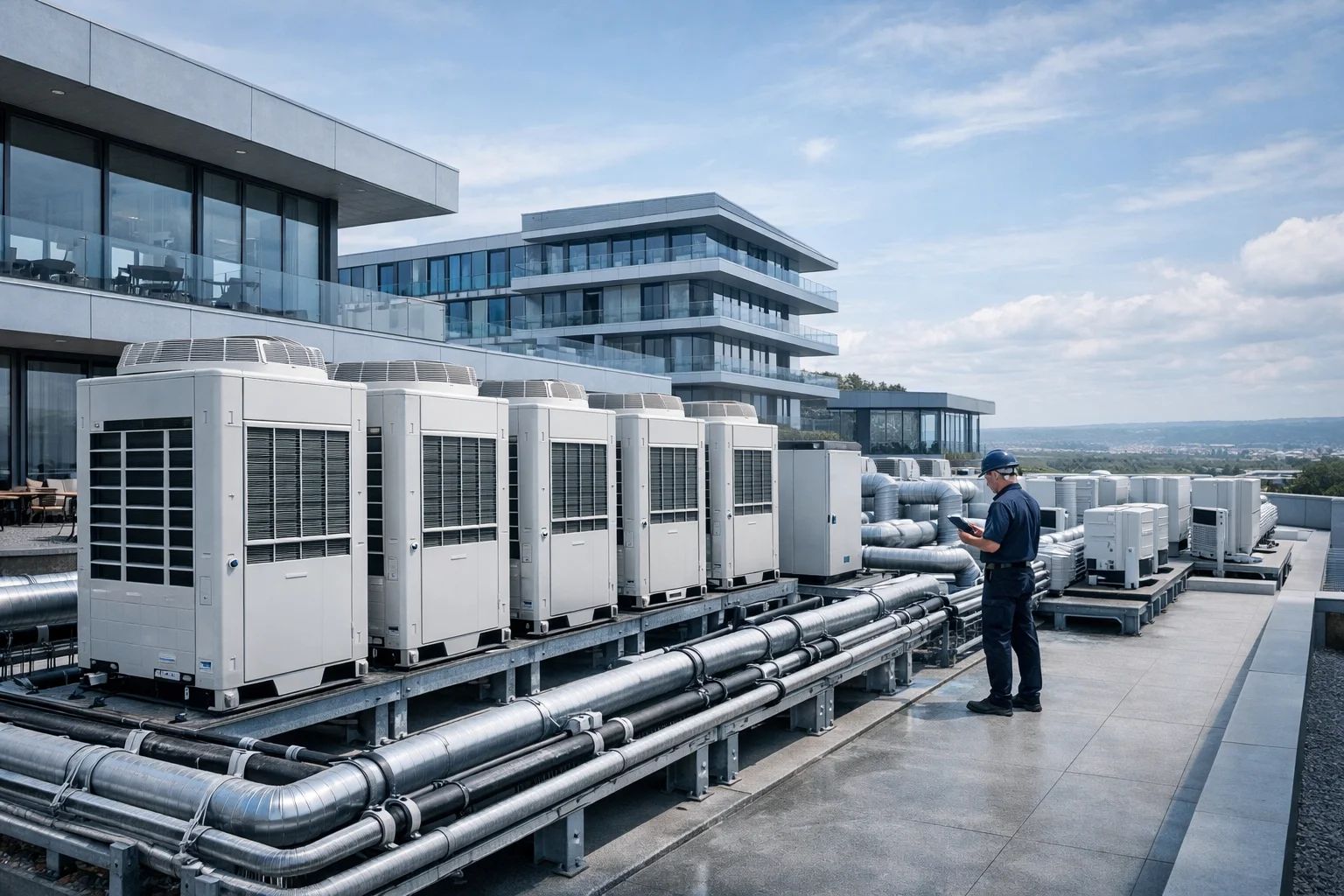

Indoor and Outdoor Unit Installation
We install indoor units according to the approved layout and the requirements of each space. Depending on the project, indoor units may include ceiling cassette, ducted, wall-mounted, or other compatible configurations.

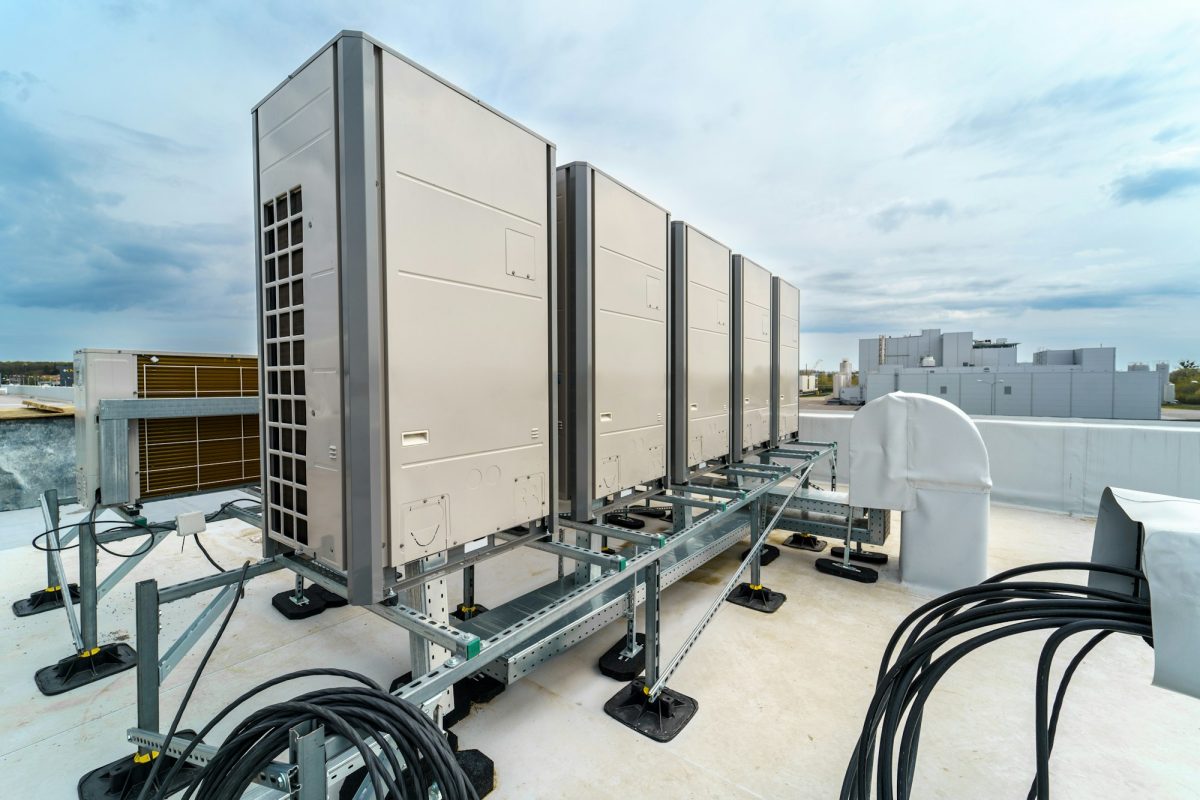

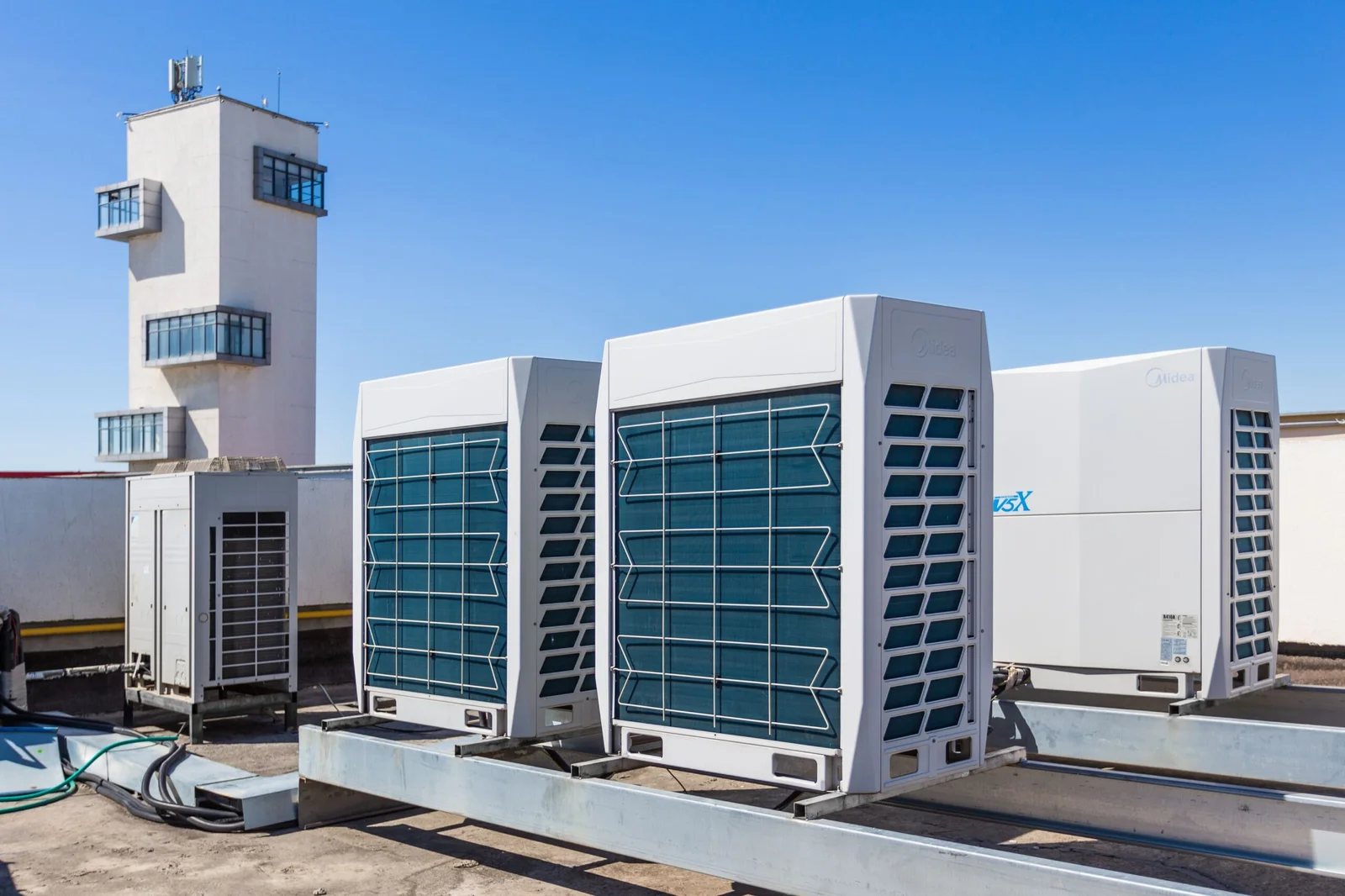

Outdoor condensing units are positioned with suitable clearances for airflow, heat rejection, maintenance access, and safe operation. Correct positioning is particularly important in the UAE, where outdoor equipment operates under high ambient temperatures for extended periods.
Refrigerant Piping and Connections
Refrigerant piping is one of the most important parts of a VRF installation. The piping network connects the outdoor condensing units with multiple indoor units and must follow the manufacturer’s requirements for pipe diameter, routing, joints, insulation, elevation, and allowable lengths.
Long pipe runs or large height differences between indoor and outdoor units can make it harder for the system to move refrigerant and return oil correctly. If the piping is not designed and installed within the system’s limits, cooling performance can be affected and equipment may experience additional strain.
Our installation work includes:
- Refrigerant pipe installation
- Branch joint installation
- Proper insulation of refrigerant lines
- Pipe support and routing
- Connection of indoor and outdoor units
- Leak testing
- Vacuuming of the refrigerant circuit
- Refrigerant charge verification where required
Proper refrigerant piping and testing help support stable cooling performance and reduce the risk of avoidable system faults.
Electrical and Control Installation
A VRF system also depends on correctly installed electrical and communication connections. We coordinate power supplies, control wiring, thermostats, and communication networks required for the system.
Where applicable, VRF controls can also be integrated with building management systems to provide centralised monitoring and control.
Testing and Commissioning
Installation is not complete when the equipment is physically connected. Before handover, the system needs to be tested and commissioned to confirm that the different components are communicating and operating correctly.
Our commissioning process can include checks of:
- Refrigerant piping and system pressure
- Refrigerant charge
- Electrical connections
- Communication between indoor and outdoor units
- Indoor unit operation
- Temperature control
- Airflow
- Operating pressures and temperatures
- Error codes and system alarms
- Individual zone performance
- Control and BMS functionality where applicable
Proper commissioning helps identify installation issues before they become recurring operational problems.
VRF System Maintenance Services
VRF maintenance is not limited to attending a breakdown after the system stops working. Multiline Projects can provide scheduled maintenance through an Annual Maintenance Contract (AMC), helping property owners and facility managers monitor system condition throughout the year.
Most VRF systems benefit from a full inspection and servicing visit approximately every 3–6 months, although the appropriate frequency depends on the system, operating hours, building environment, and manufacturer’s recommendations.

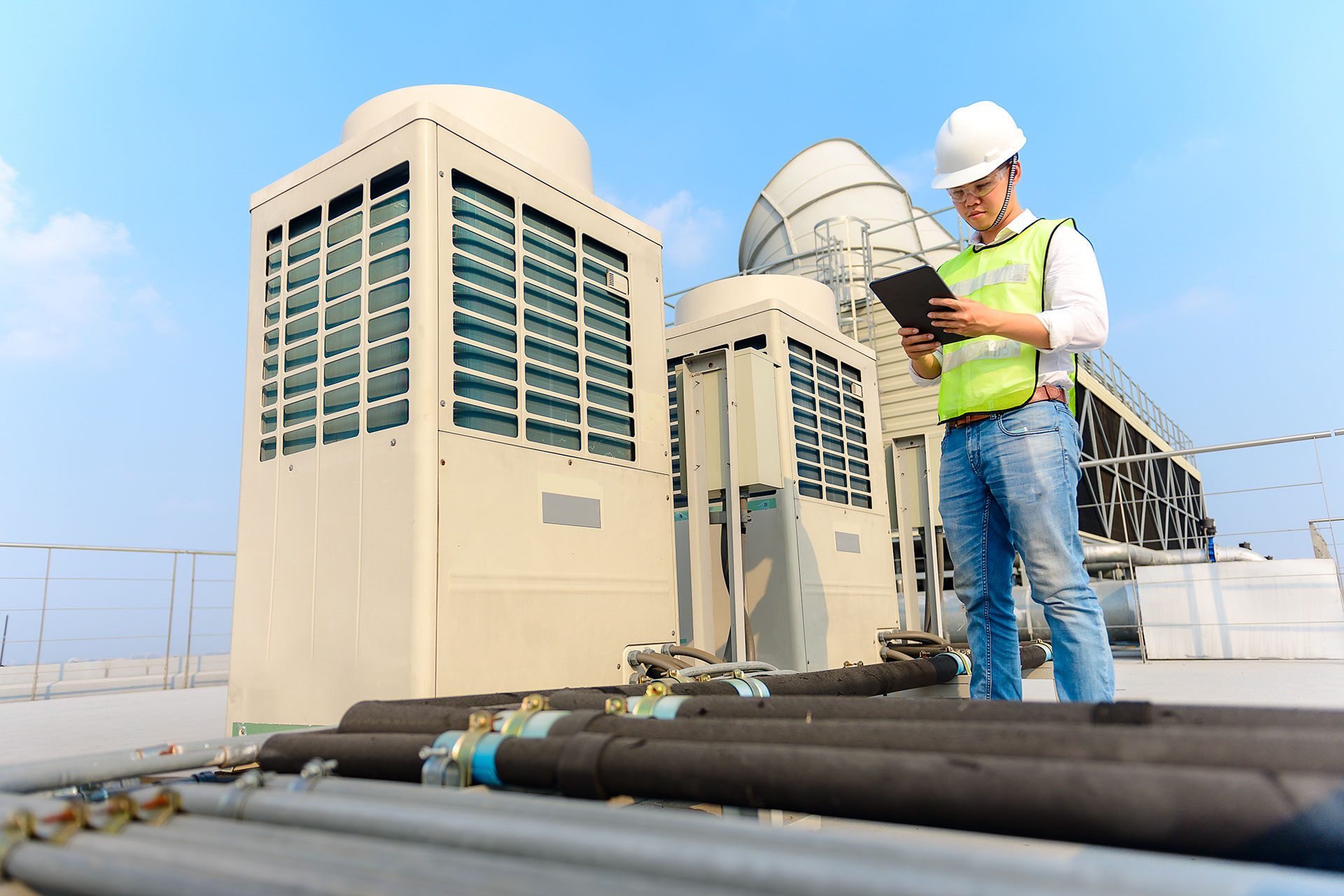

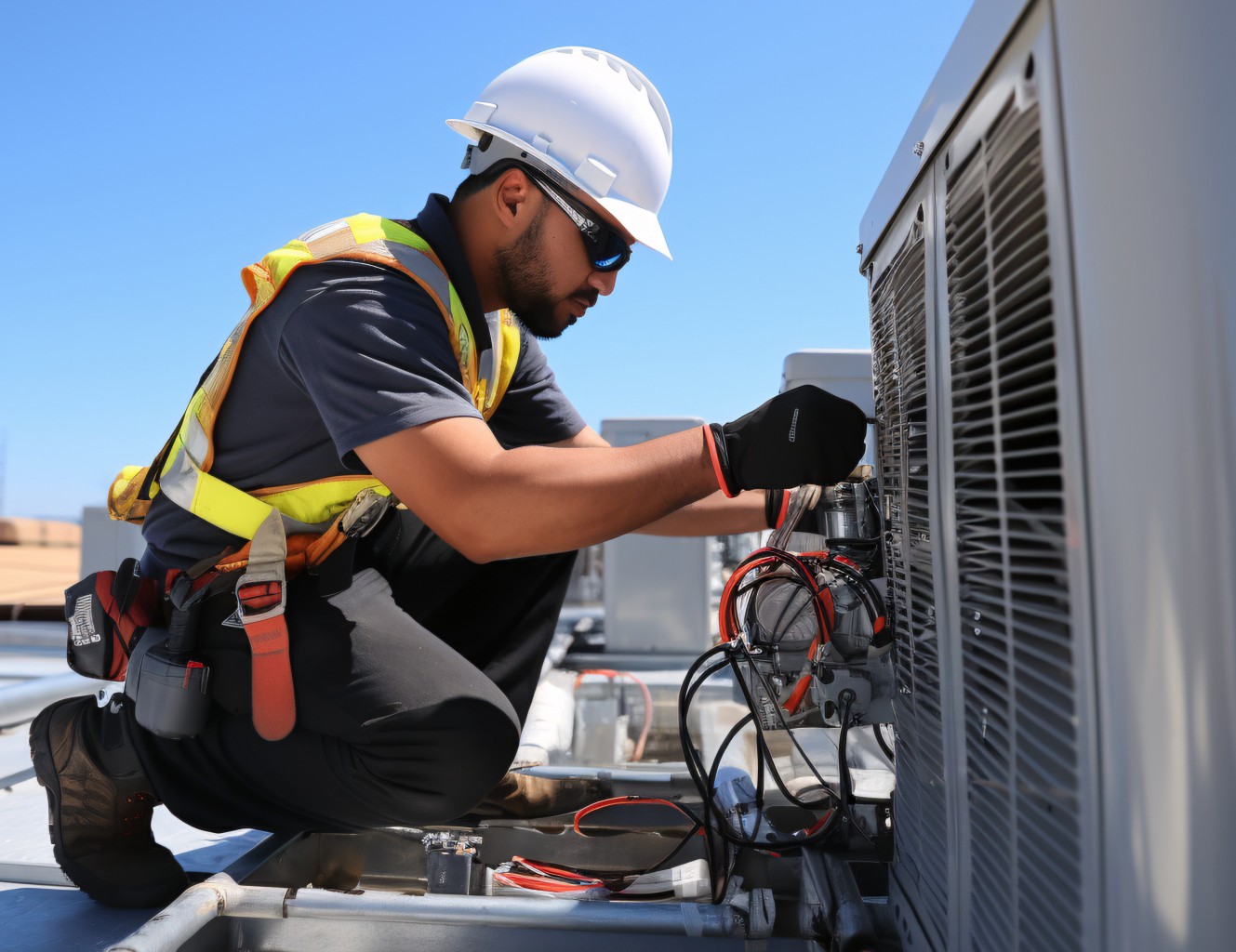

Preventive VRF Maintenance
Preventive maintenance focuses on identifying developing issues before they lead to major performance problems or unexpected breakdowns.
Depending on the equipment and maintenance agreement, our technicians can inspect:
- Indoor unit filters and coils
- Outdoor condenser coils
- Fans and motors
- Refrigerant pressures and operating conditions
- Refrigerant piping and connections
- Electrical terminals and components
- Thermostats and controllers
- Communication between system components
- Drain lines and condensate systems
- System alarms and error codes
- Overall cooling performance
Dubai's dusty and sandy environment can cause outdoor coils to become dirty more quickly, restricting heat transfer and affecting system efficiency. Properties close to the coast may also face increased corrosion risk from salt-laden air. Coil condition, cleanliness, airflow, and signs of corrosion are therefore important parts of a maintenance inspection.
Refrigerant Leak Detection
Refrigerant leakage can gradually reduce cooling performance and may trigger recurring alarms or abnormal operating conditions.
During maintenance and troubleshooting, we inspect relevant refrigerant connections and system performance to identify signs of leakage. If a leak is suspected, the affected circuit can be tested and repaired before the system is properly recharged and returned to normal operation.
Simply adding refrigerant without identifying the underlying cause is not a complete maintenance solution.
VRF Troubleshooting and Corrective Maintenance
Some VRF problems become noticeable before the system stops operating completely. Uneven cooling, recurring alarms, unusual noises, water leakage, or a noticeable increase in energy consumption can all indicate that the system needs inspection.
Our troubleshooting service can investigate issues such as:
- Inadequate or uneven cooling
- Indoor units not operating
- Frequent system alarms
- Refrigerant-related faults
- Communication errors
- Abnormal temperature readings
- Water leakage from indoor units
- Unusual noise or vibration
- Outdoor unit performance problems
- Repeated compressor or system faults
- Control and thermostat issues
We identify the source of the problem and carry out the necessary corrective work rather than treating only the visible symptom.
Benefits of VRF Systems
Efficient Variable-Capacity Operation
VRF systems adjust refrigerant flow according to cooling demand rather than continuously operating at full capacity. This can help reduce unnecessary energy consumption when properly designed, installed, and maintained.
Individual Zone Control
Different rooms can have different cooling requirements. VRF allows individual indoor units or zones to be controlled separately, helping occupants maintain suitable temperatures in the spaces they use.
Reduced Outdoor Equipment Footprint
Multiple indoor units can be connected to a comparatively compact outdoor equipment arrangement. This can be useful where roof or service-area space is limited.
Quiet Operation
With correctly selected and installed indoor units, VRF systems can provide quiet operation for environments such as offices, hotels, residences, and other occupied spaces.
Flexible Applications
VRF can be configured around different building layouts and cooling requirements, making it suitable for multi-zone residential and commercial projects.
Where VRF Systems Are Used
VRF systems are particularly suitable for buildings where multiple areas require independent temperature control.
Offices
Different temperatures can be maintained in meeting rooms, private offices, workspaces, and common areas according to occupancy and operating requirements.
Hotels
VRF can provide individual room control while supporting the varying cooling requirements of guest rooms and other hotel areas. Heat recovery configurations can be particularly useful where some zones need cooling while others require heating.
Villas and Residential Properties
For larger residences with multiple rooms and zones, VRF can provide centralised system management with independent temperature control.
Retail and Commercial Spaces
Retail units, showrooms, and commercial premises can benefit from flexible zone control where different areas have different cooling loads or operating schedules.
Mixed-Use and Multi-Zone Buildings
VRF is suitable for buildings containing several spaces with different occupancy levels, schedules, and temperature requirements.
Our VRF Installation and Maintenance Approach
At Multiline Projects, we combine HVAC engineering, installation, testing, and maintenance to support the system throughout its operational life. Our approach covers both new installations and ongoing system care.
Understand the Requirement
We assess the building, application, cooling requirements, and zoning needs before determining a suitable system configuration.
Plan the Installation
Indoor and outdoor unit locations, refrigerant piping routes, electrical connections, and control requirements are coordinated before installation.
Install the System
Our team installs the equipment, refrigerant piping, branch connections, electrical components, and controls according to the approved design and applicable manufacturer requirements.
Test and Commission
The completed installation is tested to verify refrigerant, electrical, communication, and performance-related parameters before handover.
Maintain and Support
Planned maintenance, AMC services, and responsive troubleshooting help keep the system operating reliably and efficiently after commissioning.
Why Choose Multiline Projects for VRF Services?
Choosing a VRF contractor is not only about supplying air conditioning equipment. The contractor needs to understand system design, refrigerant piping, installation, controls, commissioning, and long-term maintenance.
At Multiline Projects, we provide HVAC and electromechanical services with an established presence in the UAE. Our approach treats VRF as a complete system, from initial planning and installation through maintenance and corrective support.
We focus on:
- Proper system planning
- Technical installation
- Accurate refrigerant piping
- Reliable controls and connections
- Detailed testing and commissioning
- Preventive maintenance
- Annual Maintenance Contracts
- Troubleshooting and corrective repairs
- Long-term system performance
Installation quality also matters beyond the initial handover. Correct piping, equipment placement, controls, and commissioning can make future maintenance easier and help the system perform according to its intended design.
Frequently Asked Questions About VRF Systems
Is VRF better than a conventional DX system?
VRF can offer advantages such as individual zone control, variable-capacity operation, reduced outdoor space requirements, and potentially lower energy consumption. However, the most suitable HVAC system depends on the building, cooling load, budget, and operating requirements.
Is VRF suitable for Dubai's climate?
Yes. VRF systems are suitable for many commercial and residential applications in the UAE. Equipment selection should take local ambient conditions into account, while correct installation and regular maintenance are important for reliable operation during periods of high cooling demand.
How often should a VRF system be maintained?
Most VRF systems can benefit from a full inspection and servicing visit approximately every 3–6 months. The appropriate frequency can vary according to system size, operating hours, environmental conditions, occupancy, and manufacturer recommendations.
Do you offer Annual Maintenance Contracts (AMC) for VRF systems?
Yes. VRF maintenance can be arranged through an Annual Maintenance Contract (AMC), providing scheduled inspections and servicing throughout the contract period rather than relying only on breakdown callouts. The maintenance schedule can be planned according to the building and system requirements.
Can you take over maintenance for a VRF system installed by another company?
Yes. An existing VRF system can be assessed before maintenance begins. The condition of the equipment, refrigerant circuit, controls, indoor and outdoor units, and previous maintenance requirements can be reviewed to establish an appropriate maintenance approach.
What's included in a VRF maintenance visit?
A maintenance visit can include inspection and servicing of indoor and outdoor units, filters, coils, fans, refrigerant conditions, piping connections, electrical components, controls, drain systems, alarms, communication, and overall cooling performance. The exact scope depends on the equipment and maintenance agreement.
How long does a VRF installation take?
Installation time varies according to the number of indoor units, building size, refrigerant piping requirements, access conditions, project coordination, and system configuration. A project-specific schedule can be established after the site and installation requirements have been assessed.
What happens if a VRF system has a refrigerant leak?
A refrigerant leak can reduce cooling performance and may trigger system faults. The source should be identified and repaired before the system is properly recharged and returned to normal operation.
Can VRF systems be used in villas?
Yes. VRF can be suitable for larger villas and residential properties with multiple rooms or zones requiring independent temperature control. The system should be selected according to the property’s cooling load and layout.
Can VRF be integrated with a building management system?
Depending on the equipment and controls selected, VRF systems can be integrated with building management systems for centralised monitoring, scheduling, and control.
Ready to Talk About Your VRF Project?
Whether you are planning a new VRF installation, upgrading an existing HVAC system, or looking for scheduled maintenance, the right approach starts with understanding the building and the condition of the equipment. Multiline Projects provides VRF system installation, commissioning, maintenance, troubleshooting, and AMC services for commercial, residential, and multi-zone properties in Dubai and across the UAE.
Planning a new VRF system? Request a site assessment. Already have a VRF system? Get a maintenance or AMC quote from Multiline Projects.
